Basic Information |
|
|
Part Number |
02354MXJ
|
|
Model |

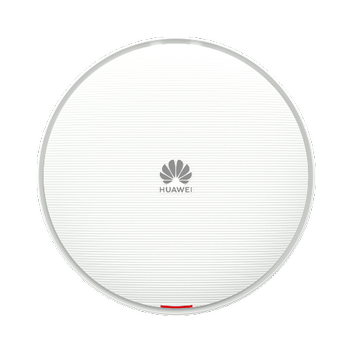

AirEngine 5761-12
|
|
Description |
AirEngine5761-12(11ax indoor,2+2 dual bands,smart antenna,USB,IoT Slot,BLE)
|
|
First supported version |
V200R021C10
|
|
Technical Specifications |
|
Installation Type |
Wall,Ceiling,T-Rail
|
|
Diameter [mm] |
220 mm
|
|
Height [mm] |
51 mm
|
|
Weight without packaging |
1.09 kg (2.40 lb)
|
|
Weight with packaging |
1.55 kg (3.42 lb)
|
|

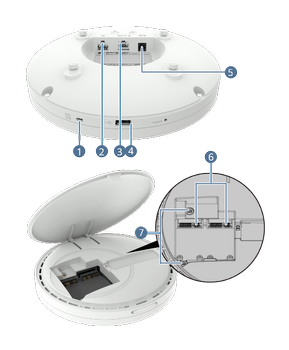

Maximum number of physical ports on the entire device |
GE (RJ45) x 2, 10M/100M/1000M auto-sensing
|
|
Maximum power consumption [W] |
12.63 (excluding USB)
|
|
Maximum heat dissipation [BTU/h] |
43.1
|
|
Power supply mode |
DC adapter,PoE
|
|
Input voltage range [V] |
DC: 12 V ± 10%
PoE: 802.3at/af
|
|
Rated input voltage [V] |
12 V
|
|
802.3at power supply description |
No function is limited.
|
|
DC power supply description |
No function is limited.
|
|
802.3bt power supply description |
No function is limited.
|
|
802.3af power supply description |
Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz) and 22 dBm (5 GHz).
Wired network port: The GE/PoE_IN port is available, but the GE port is unavailable.
Other ports: The USB port is unavailable.
|
|
Maximum transmit power [dbm] |
2.4G:
20 dBm/chain
23 dBm (combined power)
5G:
20 dBm/chain
23 dBm (combined power)
BLE: < 10 dBm
|
|
Radio number |
2
|
|
MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 2x2
|
|
Radio interface |
Built-in smart antennas
|
|
Operating frequency band |
2.4GHz,5GHz
|
|
Wi-Fi standard |
2.4G: 802.11b/g/n/ax
5G: 802.11a/n/ac/ac Wave 2/ax
|
|
Antenna gain |
2.4G:
4 dBi/chain (peak value)
2 dBi (combined gain)
5G:
5 dBi/chain (peak value)
3 dBi (combined gain)
BLE: 4 dBi
|
|
Storage |
NAND Flash 512 MB
|
|
Storage temperature |
–40°C to +70°C (–40°F to +158°F)
|
|
Long-term operating temperature |
–10°C to +50°C (14°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
|
|
Long-term operating relative humidity [RH] |
5% RH to 95% RH
|
|
Long-term operating altitude |
–60 m to +5000 m (–196.85 ft to +16404.20 ft)
|
|
MTBF [year] |
147
|
|
MTTR [h] |
0.5
|
|
USB |
USB 2.0
|
|
Console port |
BLE console
|
|
Atmospheric pressure |
53kPa - 106kPa ETSI 300 019-2-3
|
|
Service port surge protection [kV] |
PoE port:
Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B
Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
|
|
Ground |
floating ground
|
|
BLE |
BLE5.2
|
|
3G/LTE filte (ACC) |
Supported
|
