Basic Information |
|
|
Part Number |
02354DKS
|
|
Model |

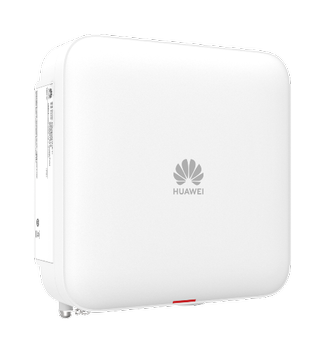

AirEngine 5761R-11
|
|
Description |
AirEngine5761R-11(11ax outdoor,2+2 dual bands,directional antenna,BLE)
|
|
First supported version |
V200R021C00
|
|
Technical Specifications |
|
Installation Type |
Wall,Pole
|
|
Height [mm] |
69 mm
|
|
Depth [mm] |
200 mm
|
|
Wide [mm] |
200 mm
|
|
Weight without packaging |
1.91 kg (4.21 lb)
|
|
Weight with packaging |
3.73 kg (8.22 lb)
|
|

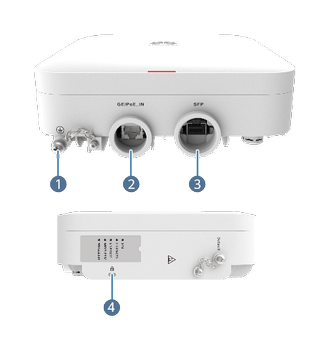

Maximum number of physical ports on the entire device |
GE (RJ45) x 1, 10M/100M/1000M auto-sensing
GE optical port (SFP)
|
|
Maximum power consumption [W] |
17.7
|
|
Maximum heat dissipation [BTU/h] |
60.4
|
|
Power supply mode |
PoE
|
|
Input voltage range [V] |
PoE: 802.3at/af
|
|
802.3at power supply description |
No function is limited.
|
|
802.3bt power supply description |
No function is limited.
|
|
802.3af power supply description |
Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 23 dBm (2.4 GHz) and 23 dBm (5 GHz).
Wired network port: The SFP optical port and GE/PoE_IN work as combo ports, and only one of them is working at a time. If both of them are enabled, the optical port takes effect preferentially.
|
|
Maximum transmit power [dbm] |
2.4G: 28 dBm (Max)
5G: 27 dBm (Max)
Note: This is the total MIMO radio power, which is the same as:
2.4G: 25 dBm/chain (Max)
5G: 24 dBm/chain (Max)
BLE: < 10 dBm
|
|
Radio number |
2
|
|
MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 2x2
|
|
Radio interface |
Built-in directional antennas
|
|
Beamwidth of the built-in antenna |
2.4 GHz:
- Horizontal plane: 65°
- Vertical plane: 40°
5 GHz:
- Horizontal plane: 65°
- Vertical plane: 20°
|
|
Operating frequency band |
2.4GHz,5GHz
|
|
Wi-Fi standard |
2.4G: 802.11b/g/n/ax
5G: 802.11a/n/ac/ac Wave 2/ax
|
|
Antenna gain |
2.4G: 10 dBi
5G: 11 dBi
BLE: 5 dBi
|
|
Storage |
NAND Flash 512 MB
|
|
Storage temperature |
–40°C to +85°C (–40°F to +185°F)
|
|
Long-term operating temperature |
–40°C to +65°C (–40°F to +149°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
|
|
Long-term operating relative humidity [RH] |
0% RH to 100% RH
|
|
Long-term operating altitude |
–60 m to +5000 m (–196.85 ft to +16404.20 ft)
|
|
MTBF [year] |
123
|
|
MTTR [h] |
0.5
|
|
Console port |
BLE console
|
|
Atmospheric pressure |
53kPa - 106kPa ETSI 300 019-2-3
|
|
Ingress protection level (dustproof/waterproof) |
IP68
|
|
Service port surge protection [kV] |
6 kA in common mode
|
|
Antenna port surge protection [kA] |
N/A
|
|
Ground |
Ground
|
|
Wind resistance |
67 m/s
|
|
BLE |
BLE5.2
|
|
3G/LTE filte (ACC) |
Supported
|
