HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor,2+2 dual b

Forsiden Huawei Networking - Fast Track HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor,2+2 dual b
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)
HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor, 2+2 dual b (50084983)

HUAWEI AirEngine5762-13W - AirEngine5762-13W(11ax indoor,2+2 dual b

Varenr.:
50084983
EAN:
6901443444601

For mer informasjon om produkter eller konfigurasjoner av Huawei Networking, kontakt Henrik Schive, +47 970 57 390, henrik.schive@pedab.no eller Hawre Stark, +46 8 587 237 35, hawre.stark@pedab.se. Leveringstid 2 uker.
Beskrivelse

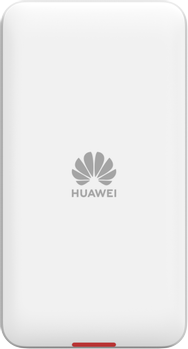

Huawei AirEngine 5762-13W. Maksimal dataoverføringshastighet: 1000 Mbit/s, Nettverksstandard: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af. Strømforbruk (maks.): 12 W. Plassering: Tak, Vegg, Produktfarge: Hvit. Antennetype: Innvendig lys, Antenne forbedringsnivå (max): 4 dBi. Flash-minne: 256 MB

Basic Information
Part Number
50084983
Model
AirEngine 5762-13W
Description
AirEngine 5762-13W(11ax indoor,2+2 dual bands,smart antenna,USB,BLE)
First supported version
V200R021C01
Technical Specifications
Installation Type
Desk,Wall,Ceiling,Junction Box
Height [mm]
160 mm
Depth [mm]
38 mm
Wide [mm]
86 mm
Weight without packaging
0.320 kg (0.705 lb)
Weight with packaging
0.542 kg (1.195 lb)
Maximum number of physical ports on the entire device
GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Maximum power consumption [W]
12
Maximum heat dissipation [BTU/h]
41
Power supply mode
DC adapter,PoE
Input voltage range [V]
DC: 12 V ± 10%
PoE: 802.3af (excluding USB)
Rated input voltage [V]
12 V
802.3at power supply description
No function is limited.
DC power supply description
No function is limited.
802.3af power supply description
The USB function is unavailable.
Maximum transmit power [dbm]
2.4G:
20 dBm/chain
23 dBm (combined power)
5G:
20 dBm/chain
23 dBm (combined power)
BLE: < 10 dBm
Radio number
2
MIMO spatial streams
Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 2x2
Radio interface
Built-in smart antennas
Operating frequency band
2.4GHz,5GHz
Wi-Fi standard
2.4G: 802.11b/g/n/ax
5G: 802.11a/n/ac/ac Wave 2/ax
Antenna gain
2.4G:
2 dBi/chain (peak value)
1 dBi (combined gain)
5G:
3 dBi/chain (peak value)
1 dBi (combined gain)
BLE: 4 dBi
Storage
NAND Flash 256 MB
Storage temperature
–40°C to +70°C (–40°F to +158°F)
Long-term operating temperature
0°C to 40°C (32°F to 104°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Long-term operating relative humidity [RH]
5% RH to 95% RH
Long-term operating altitude
–60 m to +5000 m (–196.85 ft to +16404.20 ft)
MTBF [year]
185
MTTR [h]
0.5
USB
USB 2.0 (supporting 5 W power supply)
Console port
BLE console
Atmospheric pressure
53kPa - 106kPa ETSI 300 019-2-3
Service port surge protection [kV]
PoE port:
Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B
Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Ground
floating ground
BLE
BLE5.0
3G/LTE filte (ACC)
Not supported

Selv om vi gjør vårt beste for å gi relevant informasjon, så er bildene kun for å gi et generelt inntrykk, og selve varen er ikke nødvendigvis akkurat slik som avbildet. Dersom det er forskjeller mellom produktoverskrift, beskrivelse og bilde, så er det produktoverskriften som gjelder (f.eks. PCer kommer ikke nødvendigvis med skjerm selv om bildet viser det). Hvis noe er uklart, vennligst send epost til kundestøtte før du bestiller. Vi tar forbehold om trykkfeil og endring av priser og spesifikasjoner uten varsel.
