HUAWEI CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC p

02354GCW-002

CE6863E-48S6CQ

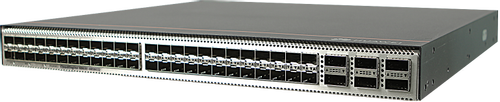

CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)

02354GCT-002 (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, without fan and power modules))
02354GCX-002 (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust))

Cabinet installation

420.0 mm

442.0 mm

43.6 mm

5.7 kg (12.57 lb) (excluding optical modules, power modules, and fan modules)

8.95 kg (19.73 lb)

226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
261 W (100% throughput, short-distance optical modules on all ports, dual power modules)

167 W

384 W

570 BTU/hour

Air cooling

771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
891 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)

1310 BTU/hour

AC,DC,HVDC

Rated AC input voltage range: 100 V AC to 240 V AC; 50/60 Hz
Rated –48 V DC input voltage range: –48 V DC to –60 V DC
Rated input voltage range for 600 W AC & 240 V DC: 240 V DC
Rated input voltage range for 1200 W HVDC: 240 V DC to 380 V DC

Maximum AC input voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz
Maximum –48 V DC input voltage range: –38.4 V DC to –72 V DC
Maximum input voltage range for 600 W AC & 240 V DC: 190 V DC to 290 V DC
Maximum input voltage range for 1200 W HVDC: 190 V DC to 400 V DC

600 W AC&240 V DC power module (PAC600S12 series):
· 8 A (100 V AC to 240 V DC)
· 4 A (240 V DC)
1000 W DC power module (PDC1000S12 series): 30 A (–48 V DC to –60 V DC)
1200 W high-voltage DC power module (PHD1K2S12 series): 8 A

600 W (AC&240 V HVDC)
1000 W (–48 V DC)
1200 W (380 V HVDC)

DRAM: 4 GB

64 MB

4 GB

Supported

RJ45

48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command. 2. 10GE LRM/80KM linear optical modules are not supported. 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported. 4. 25GE copper cables can be used only on stack ports and M-LAG peer-link ports.)

6*100GE QSFP28
Note:
1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s.
2. A 100GE QSFP28 port cannot be split into 4 x 25GE or 4 x 10GE ports.
3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack ports and M-LAG peer-link ports. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.

25GE and 100GE optical ports

Supported

1+1 backup

Supports 3+1 backup. Fan modules work in hot backup mode. If a fan module fails, the system can still work properly for a short period of time. However, you are advised to replace the faulty fan module immediately.

2

AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
HVDC: 4 kV in common mode and 2 kV in differential mode

Pluggable

4

Front-to-rear or rear-to-front, depending on the selected fan modules and power modules

-40ºC to +70ºC (-40°F to +158°F)

0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

5% RH to 95% RH, non-condensing

5% to 95% RH, non-condensing

≤ 5000 m (16404 ft.)

≤ 5000 m (16404 ft.)

47.81 years

1.95 hours

- Front-to-back airflow: < 58 dB(A)
- Back-to-front airflow: < 57 dB(A)

- Front-to-back airflow: < 75 dB(A)
- Back-to-front airflow: < 74 dB(A)

0.9999962836
